Description

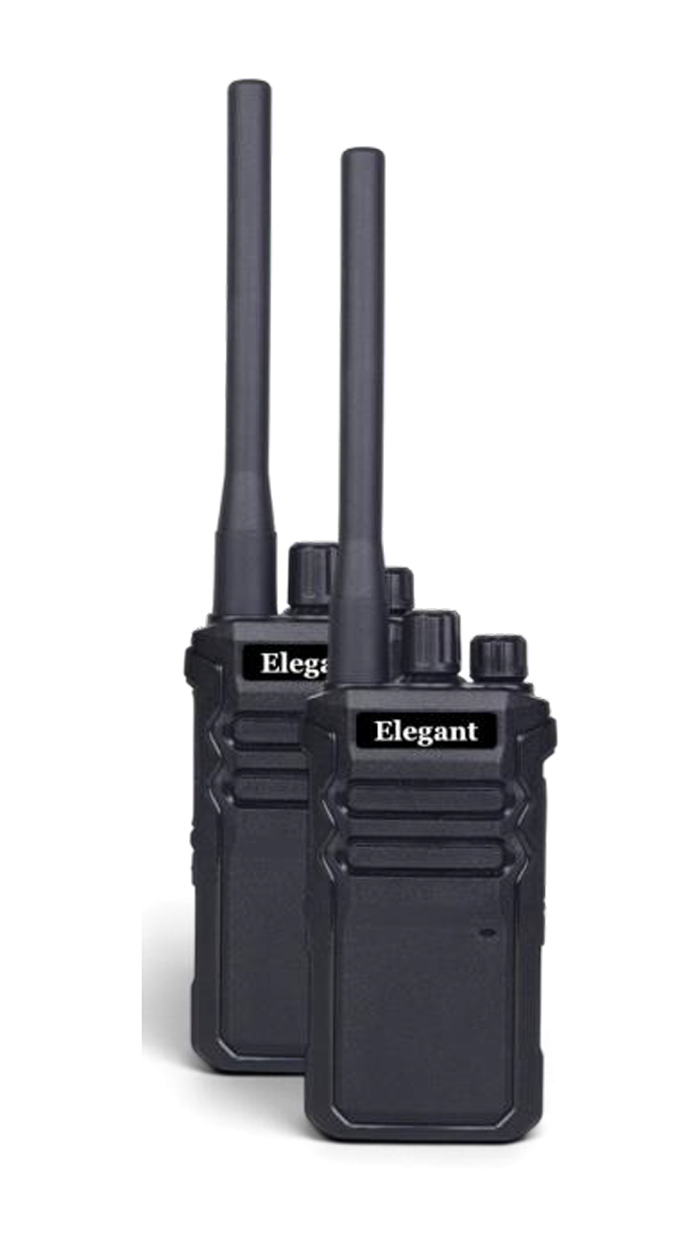

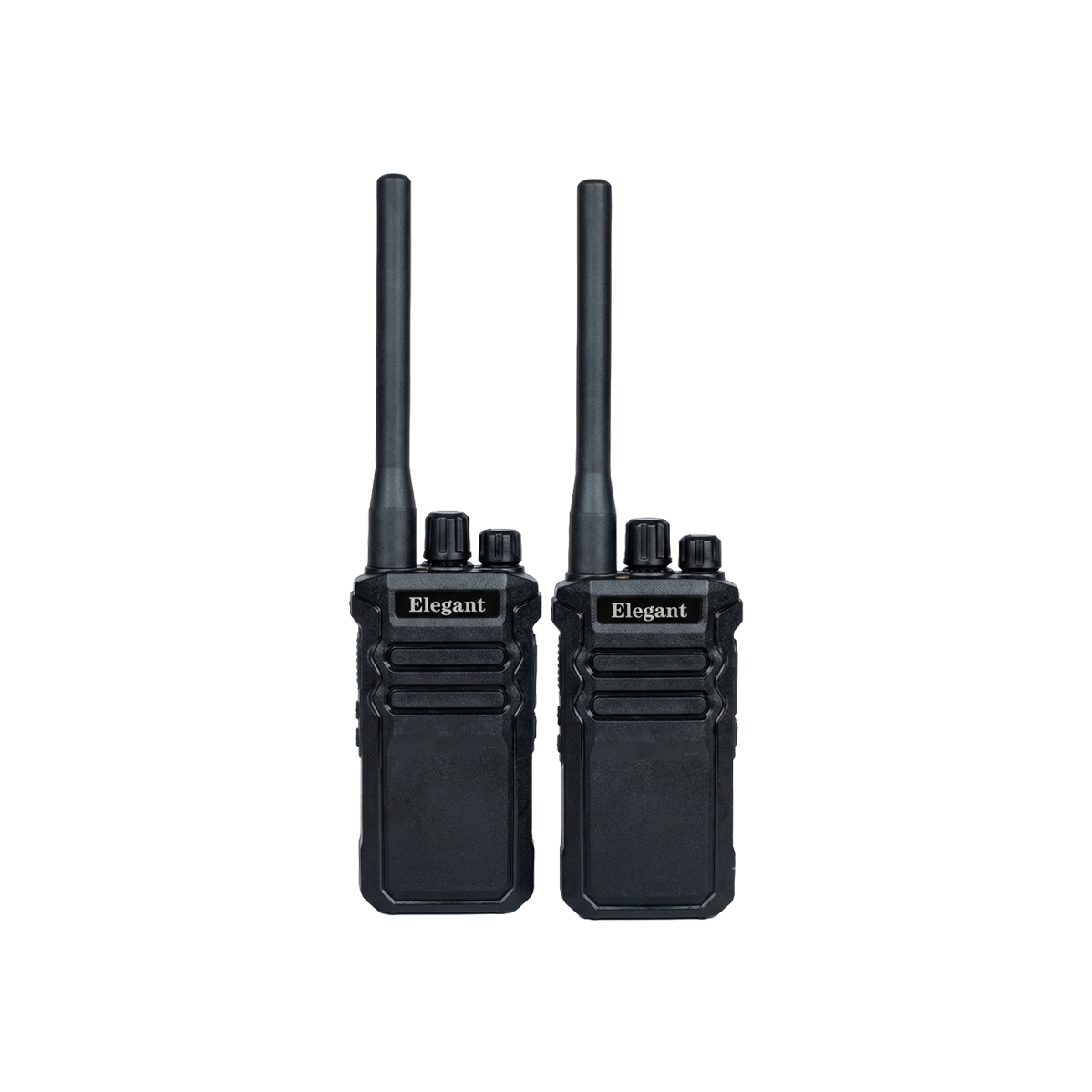

The Elegant S-105 is a high-performance, license-free walkie-talkie engineered for professionals who demand reliable, long-range communication without compromise. Combining a thin, lightweight, and rugged design with heavy-duty performance, it features 16 programmable channels operating on the PMR446 frequency range and delivers crystal-clear audio even in loud environments.
Equipped with a powerful 3500 mAh lithium battery, it ensures all-day connectivity supported by advanced functions like VOX hands-free transmission, channel scanning, and busy channel lock. Each pack includes two complete units—complete with batteries, antennas, chargers, and belt clips—making it a dependable, cost-effective solution for demanding operational needs.
0.5W
282
16
| GENERAL | TRANSMITTER | RECEIVER | |||
|---|---|---|---|---|---|
| Frequency Range | 446 MHz | Frequency Range | 446-446.025 MHz | Frequency Range | 446-446.025 MHz |
| Channels | 16 | RF Power | 0.5W | Sensitivity | ≤0.2 µV |
| Working Voltage | 7.4VDC | Modulation Type | FM | Occupied Bandwidth | ≤16kHz |
| Working Temperature | -30°C~+60°C | Spurious Radiation | ≤7.5 µW | Selectivity | ≥65dB |
| Antenna | High Gain Antenna | Modulation Noise | ≤40dB | Intermodulation | ≥55dB |
| Antenna Impedance | 50 Ω | Modulation Distortion | ≤5% | Audio Power Output | 1W |
| Mode of Operation | Simplex or Semi-duplex | Frequency Stability | 5ppm | Audio Distortion | ≤10% |
| Battery | 3500mAh | Max Freq. Deviation | ≤±5kHz | Frequency Stability | 5ppm |
| Dimensions | 122×57×42.8mm (Without Antenna) | Current | ≤ 1400mA | Current | Standby 60mA / Working 150mA |
| Audio Response (300-3400Hz) | +6.5 ~ -14dB | Audio Response (300-3400Hz) | +7 ~ -12.5dB | ||
| Adjacent Ch. Power | ≥65dB | ||||
FM Modulation
Frequency Modulation ensures stable, clear signal transmission across the PMR446 frequency range with minimal interference.
High Gain Antenna
Enhanced antenna design maximizes signal strength and reception distance, enabling long-range coverage in open and semi-obstructed areas.
Simplex/Semi-Duplex Operation
Supports both one-way and two-way communication modes, giving operators flexibility in how they connect and coordinate.
- License-Free — Operate on PMR446 frequencies with zero regulatory overhead or licensing costs.
- All-Day Battery — 3500mAh lithium keeps you connected for extended shifts without downtime.
- Programmable Flexibility — 16 channels self-program to any PMR446 frequency. One device, unlimited configurations.
- Professional Audio Quality — High-quality speaker + mic captures crystal-clear voice even in crowded, noisy environments.
- Long-Range Coverage — High-gain antenna + 0.5W transmission delivers stable signals across extended distances.
- Rugged & Reliable — Built-tough for harsh environments. Durable design for all-day professional use.
- Compact & Portable — Thin, lightweight (fits pocket/belt). Heavy on performance despite small form factor.
- Easy Operation — Simple knob-based controls. No steep learning curve. Voice prompts guide users.
- Cost-Effective — Professional features at competitive pricing. No licensing, no hidden costs.
- Trusted Globally — Excellent product quality, highly praised, trusted by professional teams worldwide.
